Compact offering from JD hits market

By Dairy News

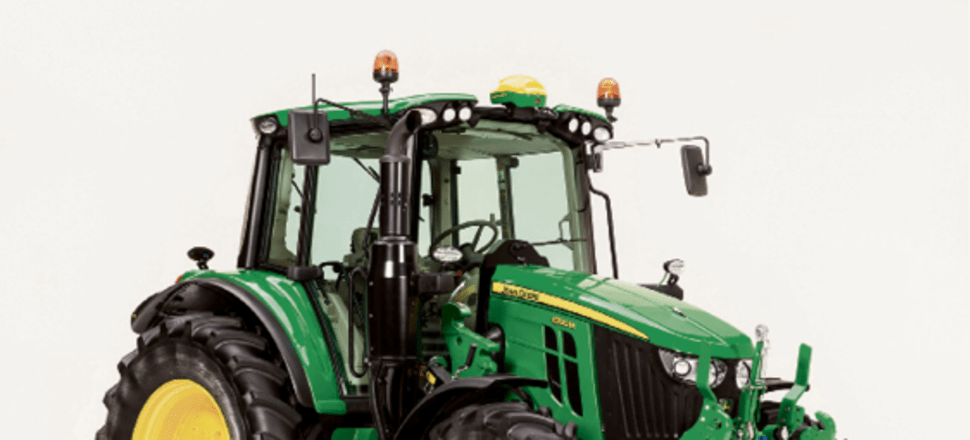

JOHN DEERE has developed a completely new 6M Series tractor range, with higher standards of comfort, performance, manoeuvrability and visibility.

These replace the previous 6M, 6MC and 6RC Series and include three new four-cylinder models from 90 to 120 hp, featuring a 2.4 m wheelbase.

This is a more compact 6M Series tractor than John Deere has offered before, with the low bonnet design presenting a clear view to the front of the machine.

In addition, a slimmer steering wheel cowl and the newly designed panoramic window in the cab roof provides full visibility for loader work or operation in confined spaces.

Improved manoeuvrability is a result of the short wheelbase, which allows a tight turning circle of only 4.35 m on the new four-cylinder models.

Despite their slim design, these full-frame concept tractors feature a maximum permissible gross weight of 10.45 tonnes, which means an unrivalled payload capacity in this class of up to 4.7 tonnes.

All these latest 6M Series tractors feature a newly designed cab that is significantly brighter and more modern in appearance, as well as extremely quiet, with a rating of 70dB(A).

All the important operating functions are located on the right-hand panel, which has been completely redesigned, while models equipped with the CommandQuad transmission can be optionally fitted with a Compact CommandARM, with the functions located on the armrest.

Up to four mechanical or electric SCVs are available — the latter is a new option available for the first time on these tractors.

Switches on the electrohydraulic joystick are fully programmable, and direction of travel can be changed on both this and the mechanical joystick via a push-button.

Driver comfort is also enhanced by mechanical cab suspension and the proven TLS (triple link suspension) front axle, while 360° LED lighting is optionally available for perfect illumination of night work.

Three different gearbox options are offered on the new 6M Series.

PowrQuad and AutoQuad are four-step powershift transmissions, while CommandQuad Plus offers fully automatic gear and range shifting without using the clutch.

Thanks to EcoShift, the maximum speed of 40 km/hour is achieved at a reduced engine speed of 1590 rpm.
